Wall mounted temperature and humidity transmitter with extended probe
High-density plastic housing, high sensitivity digital probe, 12~24V DC low-voltage input, RS485 / 0~5V / 0~10V / 4~20mA output optional. Simple structure design for convenient installation.
Typical Applications
- Meteorological Observation
- Pharmaceutical Storage
- Cooling Room
- Power Distribution Room
- Chemical Storage
- Agricultural Greenhouse
- HVAC systems
Overview
This wall mounted temperature and humidity transmitter uses precision electronic components and unique circuit design internally, allowing it to quickly detect changes in temperature and humidity in the environment. It rapidly converts the detected changes into stable electrical signal outputs. Additionally, it incorporates algorithmic compensation, making it more accurate, stable, and reliable. The transmitter is widely used in various scenarios that require precise measurement of environmental temperature and humidity. It can quickly integrate and connect with various Internet of Things systems.
It is extensively applied in monitoring and control fields, including meteorological observation, scientific research experiments, power distribution room, chemical production, environmental protection, pharmaceutical storage, hotel and guesthouse operations, grain and material storage, HVAC systems, agricultural greenhouse environmental control, and flower cultivation.
key features
- Using high-sensitivity digital probe, featuring stable signal and high precision.
- Wide measurement range, good linearity.
- 12~24V DC low-voltage input, safe and reliable.
- Low power consumption, less heat generation, suitable for use in most environments.
- Easy to install, rich in interface types, and long transmission distance, etc.
Technical Data
| Item | Options |
|---|---|
| Power Supply | 12 ~ 24V DC |
| Working Temperature | -20 ~ 60℃ |
| Temperature Measurement Range | -20 ~ 60℃ (-40 ~ 85℃ customizable) |
| Temperature Accuracy | 0.2℃ |
| Humidity Measurement Range | 5 ~ 95%RH |
| Humidity Accuracy | 2%RH |
| Output Signal | RS485 / 0～5V or 0～10V / 4-20MA |
| Response Time | ≤10s (Wind speed 1m/s) |
| Long-term Temperature Drift | ＜0.04℃/year |
| Long-term Humidity Drift | ＜0.25RH/year |

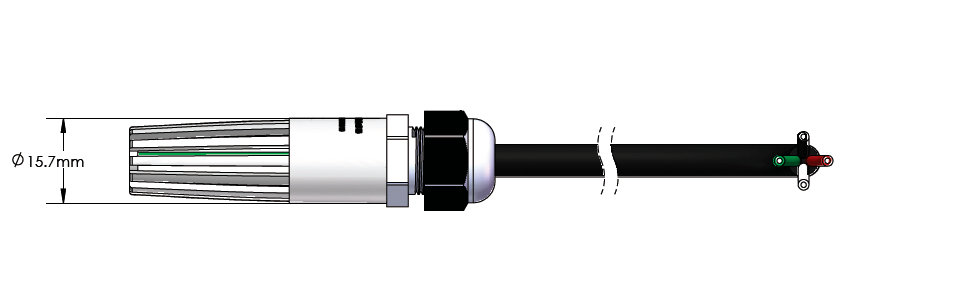

Technical Drawing
wall mounted Type
air duct mounted type
high-sensitivity digital probe type
high-sensitivity digital probe type
